Enable Auto Scaling for the Core Application

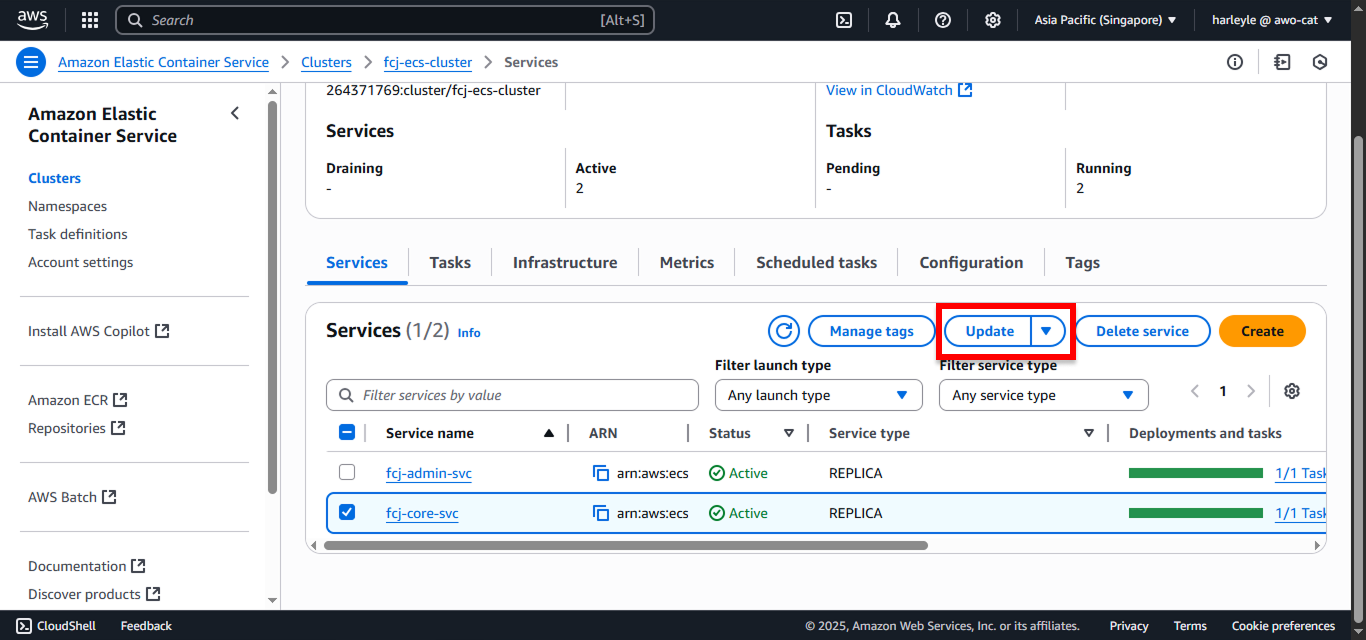

1. Update the fcj-core-svc service.

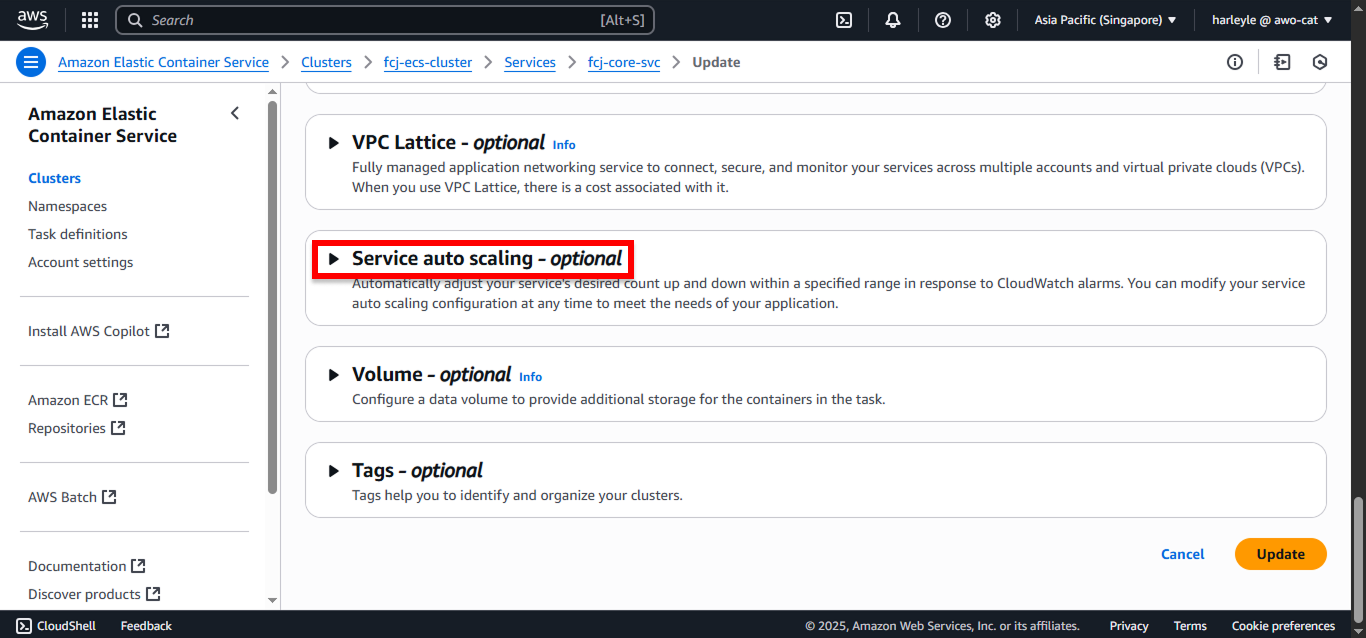

2. Scroll to Service auto scaling and expand it.

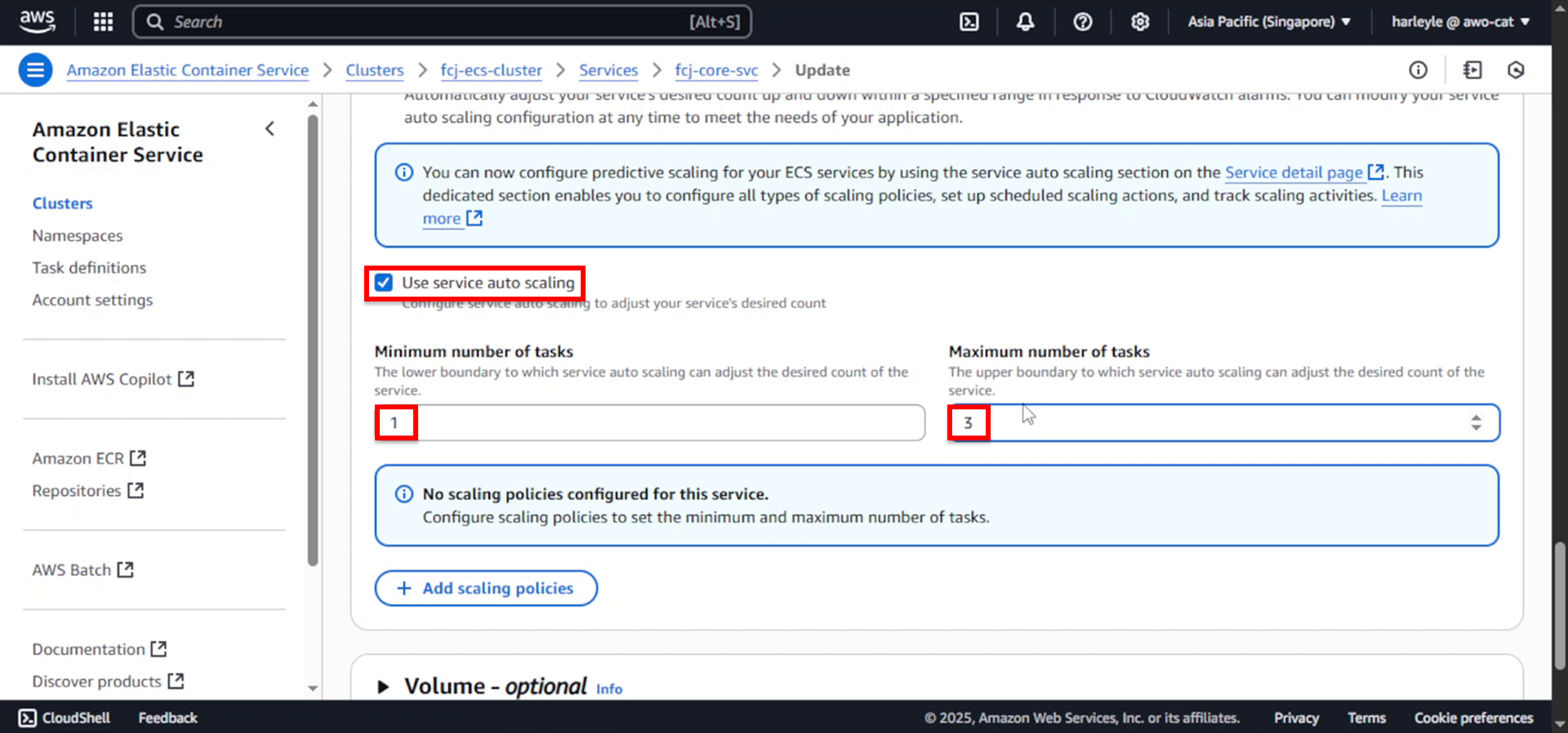

3. Configure auto scaling settings:

  • Check Use service auto scaling
  • Minimum number of tasks: Enter 1
  • Maximum number of tasks: Enter 3

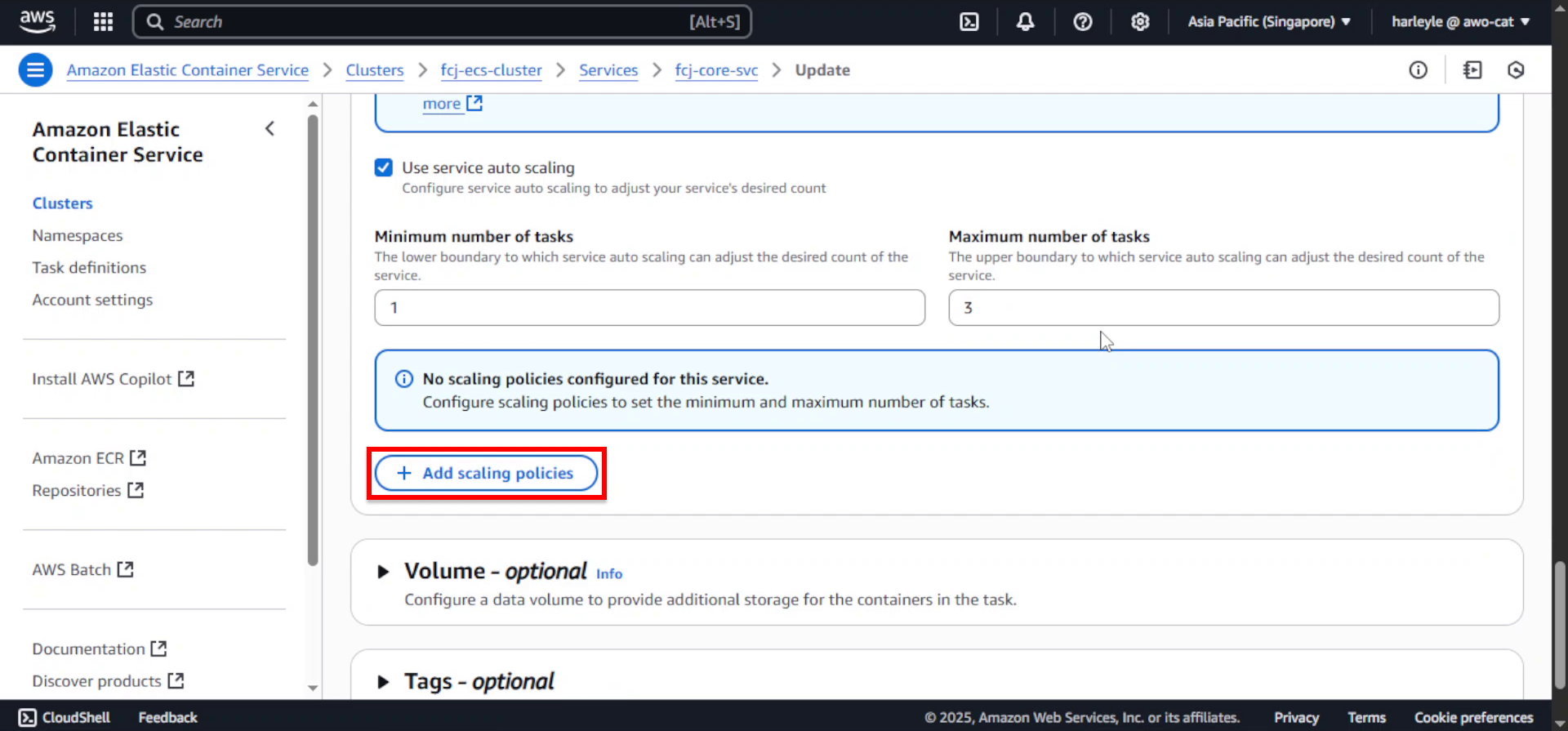

4. Click Add scaling policies.

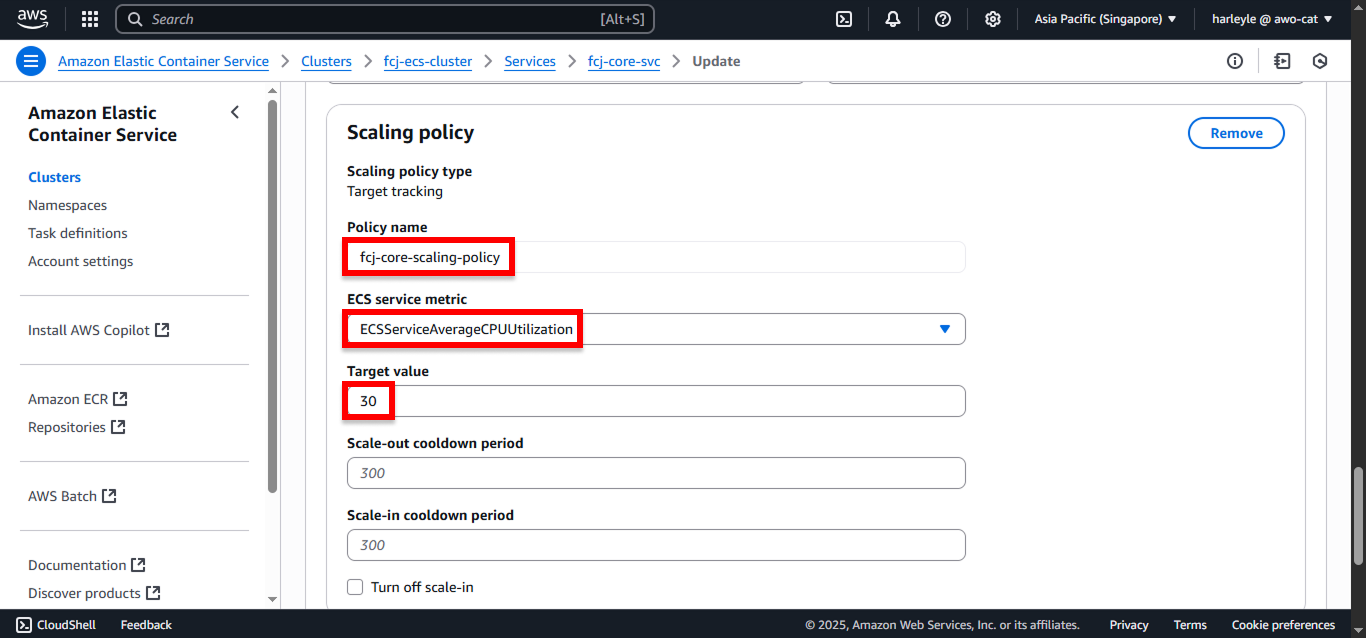

5. Configure the scaling policy:

  • Policy name: Enter fcj-core-scaling-policy
  • ECS service metric: Select ECSServiceAverageCPUUtilization
  • Target value: Enter 30


The scaling policy automatically adjusts the number of running tasks based on CPU utilization. When average CPU usage exceeds 30%, new tasks will be launched (up to the maximum of 3). When CPU usage drops below 30%, tasks will be terminated (down to the minimum of 1). This ensures optimal resource utilization and cost efficiency.

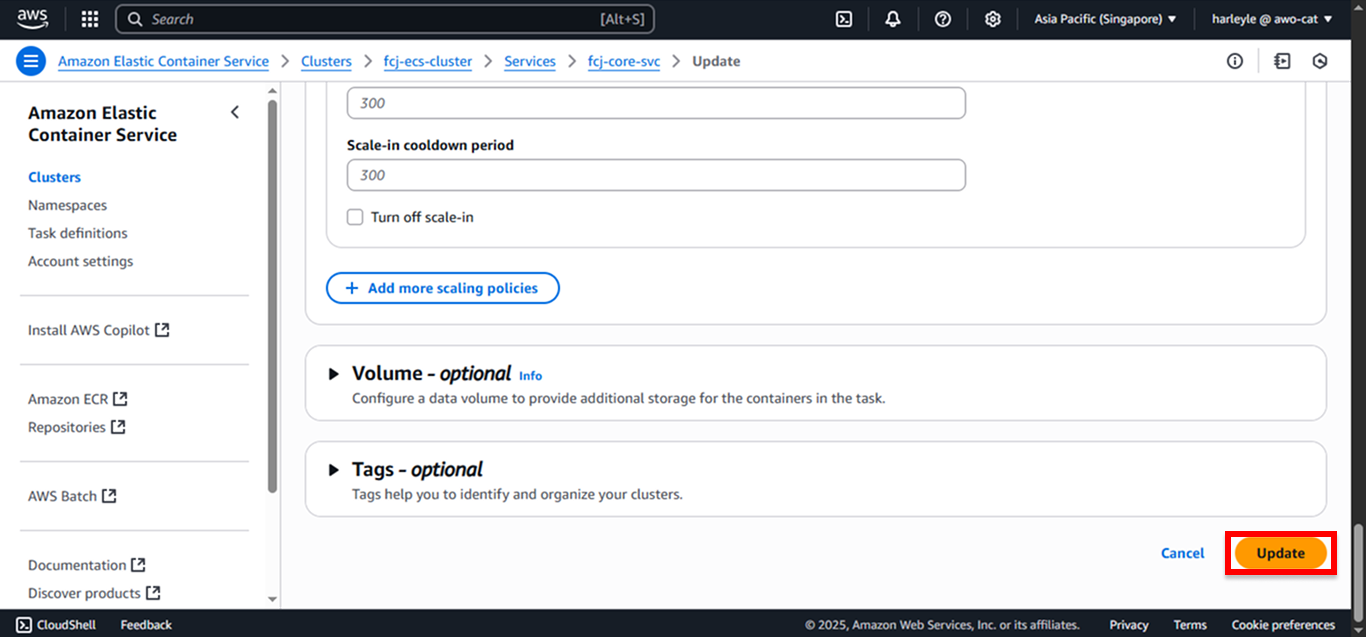

6. Click Update.
